Getting Started

Introduction

This workshop is designed to teach you about the Azure AI Agents Service and the associated SDK. It consists of multiple parts, each highlighting a specific feature of the Azure AI Agents Service. They are meant to be completed in order, as each one builds on the knowledge and work from the previous part.

Prerequisites

  1. Access to an Azure subscription. If you don't have an Azure subscription, create a free account before you begin.
  2. You need a GitHub account. If you don’t have one, create it at GitHub.

Open the Workshop

We will run this lab using GitHub Codespaces. This option provides a pre-configured environment with all the tools and resources needed to complete the workshop.

Select Open in GitHub Codespaces to open the project in GitHub Codespaces.

Open in GitHub Codespaces

Building the Codespace will take several minutes. You can continue reading the instructions while it builds.

Authenticate with Azure

You need to authenticate with Azure so the agent app can access the Azure AI Agents Service and models. Follow these steps:

  1. Ensure the Codespace has been created.
  2. In the Codespace, open a new terminal window by selecting Terminal > New Terminal from the VS Code menu.

  3. Run the following command to authenticate with Azure:

    az login --use-device-code

    Note

    You'll be prompted to open a browser link and log in to your Azure account. Be sure to copy the authentication code first.

    1. A browser window will open automatically, select your account type and click Next.
    2. Sign in with your Azure subscription Username and Password.
    3. Paste the authentication code.
    4. Select OK, then Done.

    Warning

    If you have multiple Azure tenants, then you will need to select the appropriate tenant when authenticating.

    az login --use-device-code --tenant <tenant_id>

  4. Next, select the appropriate subscription from the command line.

  5. Leave the terminal window open for the next steps.

Deploy the Azure Resources

The following resources will be created in the rg-contoso-agent-workshop resource group in your Azure subscription.

  • An Azure AI Foundry hub named agent-wksp
  • An Azure AI Foundry project named Agent Service Workshop
  • A Serverless (pay-as-you-go) GPT-4o model deployment named gpt-4o-mini (Global 2024-07-18). See pricing details here.

If you get quota issues, review your quota availability in the AI Foundry Management Center.

We have provided a bash script to automate the deployment of the resources required for the workshop.

The script deploy.sh deploys to the eastus2 region by default; edit the file to change the region or resource names. To run the script, open the VS Code terminal and run the following command:

cd infra && ./deploy.sh

Workshop Configuration

The deploy script generates the .env file, which contains the project connection string, model deployment name. The Bing connection name is leftover from the original lab, but Grounding with Bing unfortunately cannot be used with gpt-4o-mini. If you enjoyed this lab and have more available quota, try out the original lab to see Grounding with Bing!

Your .env file should look similar to this but with your project connection string.

MODEL_DEPLOYMENT_NAME="gpt-4o-mini"
BING_CONNECTION_NAME="groundingwithbingsearch"
PROJECT_CONNECTION_STRING="<your_project_connection_string>"

Project Structure

Be sure to familiarize yourself with the key subfolders and files you’ll be working with throughout the workshop.

The workshop folder

  • The main.py file: The entry point for the app, containing its main logic.
  • The sales_data.py file: The function logic to execute dynamic SQL queries against the SQLite database.
  • The stream_event_handler.py file: Contains the event handler logic for token streaming.

The shared folder

  • The files folder: Contains the files created by the agent app.
  • The fonts folder: Contains the multilingual fonts used by Code Interpreter.
  • The instructions folder: Contains the instructions passed to the LLM.

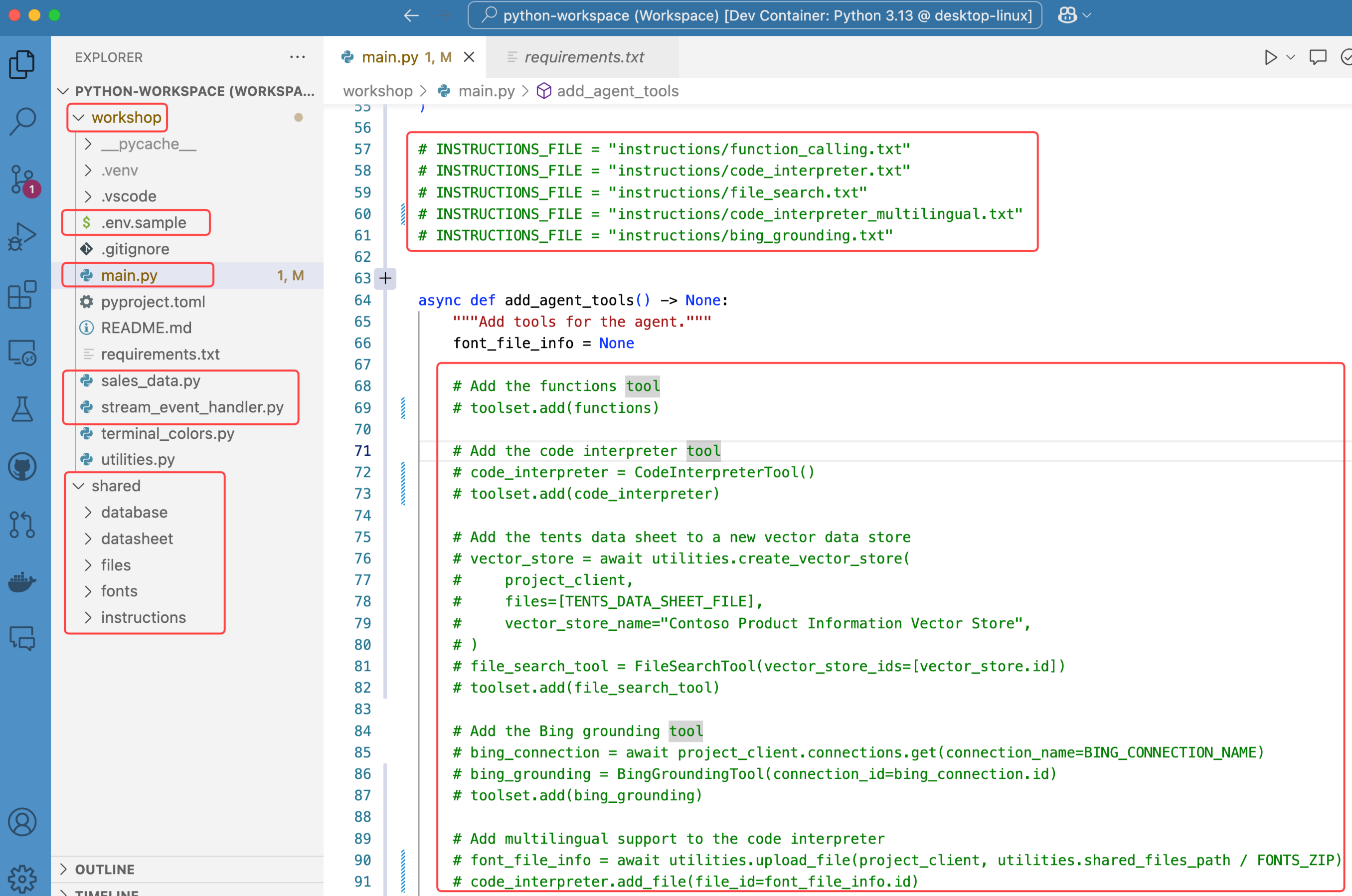

Lab folder structure
