Part 4 Multilingual Visualizations

Introduction

We’ll enhance the Code Interpreter by uploading a ZIP file with fonts for multilingual visualizations—just one example of how file uploads can extend its functionality.

Note

The Code Interpreter includes a default set of Latin-based fonts. Since the Code Interpreter runs in a sandboxed Python environment, it can’t download fonts directly from the internet.

Lab Exercise

Earlier labs didn’t include multilingual support because uploading the required font ZIP file and linking it to the Code Interpreter is time-consuming. In this lab, we’ll enable multilingual support by uploading the necessary fonts. You’ll also learn some tips on how to guide the Code Interpreter using extended instructions.

Rerun the previous lab

First, we're going to rerun the previous lab so we can see how the Code Interpreter supports multilingual text.

1. Start the agent app by pressing F5 or right click on main.py and select Run Python file in Terminal..
2. In the terminal, the app will start, and the agent app will prompt you to Enter your query.

3. Try these questions:

   1. What were the sales by region for 2022
   2. In Korean

   3. Show as a pie chart

      Once the task is complete, the pie chart image will be saved in the shared/files subfolder. Review the visualization, and you'll see that the text is not rendered correctly. This is because the Code Interpreter doesn't have the necessary fonts to render non-Latin characters.



4. When you're done, type exit to clean up the agent resources and stop the app.

Add Multilingual Font Support

1. Open the main.py.

2. Define a new instructions file for our agent: uncomment the following lines by removing the "# " characters

   INSTRUCTIONS_FILE = "instructions/code_interpreter_multilingual.txt"

   font_file_info = await utilities.upload_file(project_client, utilities.shared_files_path / FONTS_ZIP)
   code_interpreter.add_file(file_id=font_file_info.id)


   Warning

   The lines to be uncommented are not adjacent. When removing the # character, ensure you also delete the space that follows it.

3. Review the code in the main.py file.

   After uncommenting, your code should look like this:

   INSTRUCTIONS_FILE = "instructions/function_calling.txt"
   INSTRUCTIONS_FILE = "instructions/file_search.txt"
   INSTRUCTIONS_FILE = "instructions/code_interpreter.txt"
   INSTRUCTIONS_FILE = "instructions/code_interpreter_multilingual.txt"


   async def add_agent_tools() -> None:
       """Add tools for the agent."""
       font_file_info = None

       # Add the functions tool
       toolset.add(functions)

       # Add the code interpreter tool
       code_interpreter = CodeInterpreterTool()
       toolset.add(code_interpreter)

       # Add the tents data sheet to a new vector data store
       vector_store = await utilities.create_vector_store(
           project_client,
           files=[TENTS_DATA_SHEET_FILE],
           vector_store_name="Contoso Product Information Vector Store",
       )
       file_search_tool = FileSearchTool(vector_store_ids=[vector_store.id])
       toolset.add(file_search_tool)

       # Add multilingual support to the code interpreter
       font_file_info = await utilities.upload_file(project_client, utilities.shared_files_path / FONTS_ZIP)
       code_interpreter.add_file(file_id=font_file_info.id)

       return font_file_info


Review the Instructions

1. Open the shared/instructions/code_interpreter_multilingual.txt file. This file replaces the instructions used in the previous lab.

2. The Tools section now includes an extended “Visualization and Code Interpretation” section describing how to create visualizations and handle non-Latin languages.

   The following is a summary of the instructions given to the Code Interpreter:

   • Font Setup for Non-Latin Scripts (e.g., Arabic, Japanese, Korean, Hindi):
   • On first run, verify if the /mnt/data/fonts folder exists. If missing, unzip the font file into this folder.

   • Available Fonts:

     • Arabic: CairoRegular.ttf
     • Hindi: NotoSansDevanagariRegular.ttf
     • Korean: NanumGothicRegular.ttf
     • Japanese: NotoSansJPRegular.ttf

   • Font Usage:

   • Load the font with matplotlib.font_manager.FontProperties using the correct path.
   • Apply the font to:
     • plt.title() using the fontproperties parameter.
     • All labels and text using textprops={'fontproperties': font_prop} in functions like plt.pie() or plt.bar_label().

   • Ensure all text (labels, titles, legends) is properly encoded, without boxes or question marks.

   • Visualization Text:

   • Always translate the data to the requested or inferred language (e.g., Chinese, French, English).
   • Use the appropriate font from /mnt/data/fonts/fonts for all chart text (e.g., titles, labels).

Run the Agent App

1. Press F5 to run the app, or right click on main.py and select Run Python file in Terminal.
2. In the terminal, the app will start, and the agent app will prompt you to Enter your query.

Start a Conversation with the Agent

Try these questions:

1. What were the sales by region for 2022
2. In Korean

3. Show as a pie chart

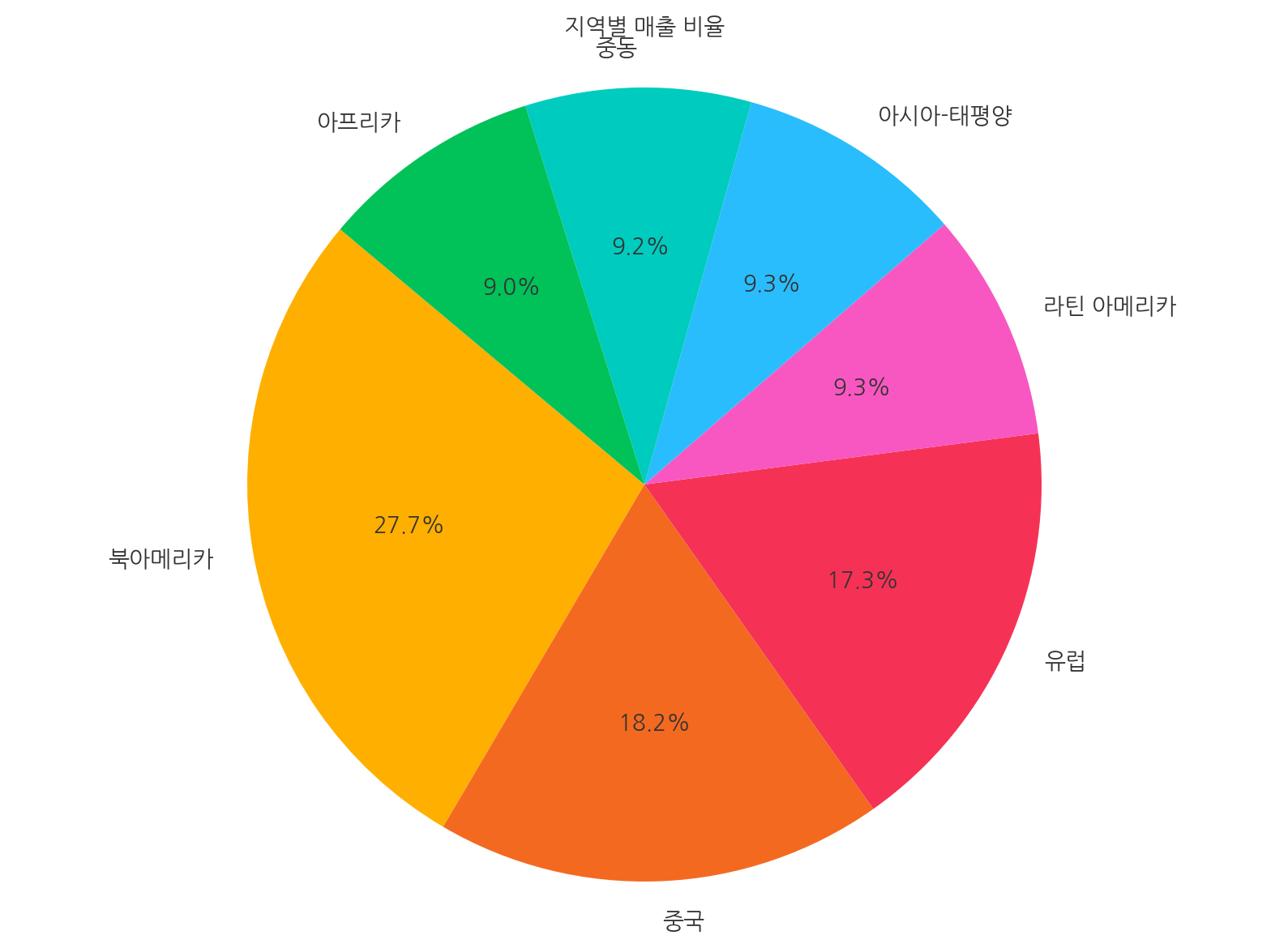

   Once the task is complete, the pie chart image will be saved in the shared/files subfolder.



Debugging the Code Interpreter

You can’t directly debug the Code Interpreter, but you can gain insight into its behavior by asking the agent to display the code it generates. This helps you understand how it interprets your instructions and can guide you in refining them.

From the terminal, type:

1. show code to see the code generated by the Code Interpreter for the last visualization.
2. list files mounted at /mnt/data to see the files uploaded to the Code Interpreter.

Restricting Code Interpreter Output

You likely don’t want end users to see the code generated by the Code Interpreter or access uploaded or created files. To prevent this, add instructions to restrict the Code Interpreter from displaying code or listing files.

For example, you can insert the following instructions at the beginning of the 2. Visualization and Code Interpretation section in the code_interpreter_multilingual.txt file.

- Never show the code you generate to the user.
- Never list the files mounted at /mnt/data.

Stop the Agent App

When you're done, type exit to clean up the agent resources and stop the app.
